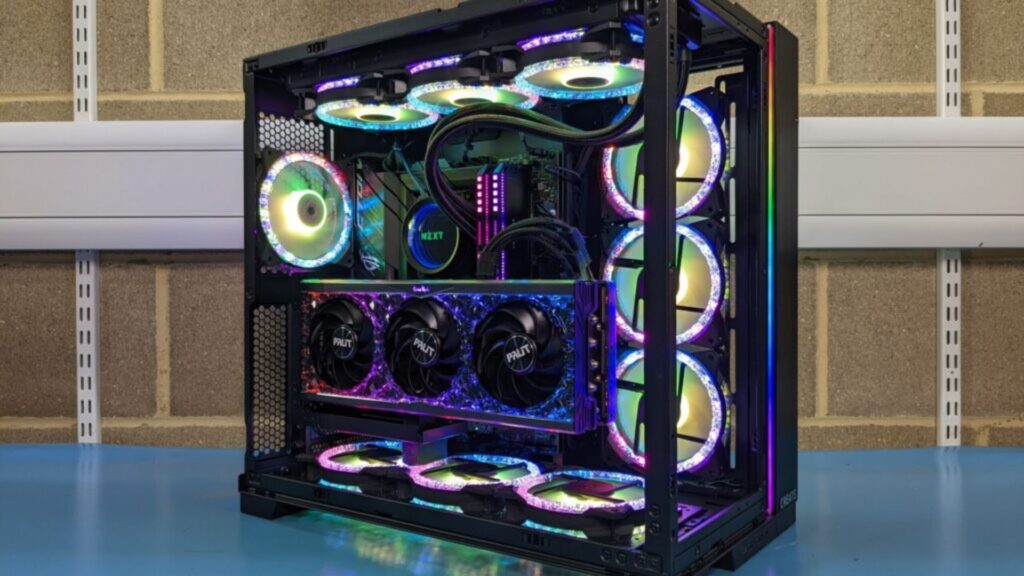

Building a Custom PC for CAD and Architectural Software

If you’re an architect, designer, or engineer working with demanding CAD and 3D architectural tools like AutoCAD, Revit, Rhino, or SketchUp, you know performance matters. A slow machine means wasted time, sluggish workflows, and limited creative flexibility. Instead of settling for a generic workstation, building a custom PC gives you the power to tailor performance to your specific software needs, save on unnecessary features, and get better long-term value. This guide walks you through the essential components, performance considerations, and recommended specs for building a custom PC that can handle intensive architectural workloads with ease.

Why Build a Custom PC for CAD?

• Performance Tuning: You choose parts optimized for your workflow.

• Cost Efficiency: Avoid paying for features you don’t need.

• Upgrade Flexibility: Easy to scale or replace parts later.

• Thermal Efficiency: Better airflow and cooling options for stable performance under load.

Whether you’re doing 2D drafting or full 3D visualization with real-time rendering, your PC should reflect the intensity of your tasks.

Key Components and Specifications

Here’s a breakdown of each critical component and how it impacts CAD and architectural software performance:

CPU (Processor)

Most Important For: 2D drafting, general modeling, BIM

CAD applications like AutoCAD, Revit, and Archicad are typically single-threaded, meaning high clock speed is more important than core count.

✅ Recommended:

• Intel Core i7 / i9 (13th or 14th Gen) – Great single-core performance

• AMD Ryzen 7 / Ryzen 9 (7000 series) – Excellent multi-purpose CAD/3D support

Clock Speed: Aim for 4.5 GHz or higher
Cores: 6–16 cores depending on rendering needs

GPU (Graphics Card)

Most Important For: 3D modeling, rendering, visualization, VR

CAD and architectural rendering benefit greatly from a powerful GPU, especially for real-time rendering tools like Enscape, Lumion, and Twinmotion.

✅ Recommended:

• NVIDIA RTX 4060 / 4070 / 4080 (for mid-to-high range)

• NVIDIA RTX A2000 / A4000 (formerly Quadro – professional GPUs)

• AMD Radeon Pro series (for Revit-certified workflows)

VRAM: Minimum 8GB for 3D projects; 12GB+ for heavy rendering
Ray Tracing: Ideal for real-time rendering engines (look for RTX support)

Motherboard

Choose a motherboard compatible with your CPU socket and chipset, with enough expansion slots and ports for future upgrades.

✅ Look For:

• At least 2 M.2 slots for SSDs

• 4 DDR5 RAM slots

• USB-C and Thunderbolt (if needed)

• PCIe 4.0 or 5.0 support for next-gen GPUs

Brands like ASUS ProArt, MSI Tomahawk, and Gigabyte Vision are popular among professionals.

RAM (Memory)

Most Important For: Multitasking, large BIM models, rendering

CAD software typically requires 16–32GB of RAM, but large Revit or Rhino files can use more.

✅ Recommended:

• 32GB DDR5 RAM (preferred)

• Upgradeable to 64GB+ for future-proofing

Faster RAM (higher MHz) helps with smooth performance, especially when working across multiple applications.

Storage

SSD is non-negotiable for fast boot times, file access, and smoother model manipulation.

✅ Recommended Setup:

• Primary Drive: 1TB NVMe M.2 SSD (OS + applications)

• Secondary Drive: 2TB SATA SSD or HDD (project files, backups)

Projects involving rendering or large BIM files benefit from fast read/write speeds.

Cooling System

Rendering and simulation can push your CPU and GPU to their limits. Proper cooling is essential to maintain consistent performance.

✅ Choose:

• High-quality air cooler (e.g., Noctua NH-D15)

• OR AIO liquid cooling system (240mm or 360mm)

• Case with good airflow and dust filters

Power Supply Unit (PSU)

Choose a reliable, 80+ Gold certified PSU with enough headroom for future upgrades.

✅ Recommended:

• 650W–850W for most builds

• Modular or semi-modular design for cable management

Monitor (Optional, but Important)

Color accuracy and resolution matter for architectural visualization.

✅ Best Choices:

• 27″–32″ 4K IPS monitors (e.g., Dell UltraSharp, ASUS ProArt)

• At least 99% sRGB or AdobeRGB support

• Dual-monitor setup improves productivity

Sample Build – Mid to High-End (2025)

This build can handle AutoCAD, Revit, Rhino, Enscape, V-Ray, and Lumion with excellent performance and future scalability.

Conclusion

Building a custom PC for CAD and architectural software is a strategic move—one that empowers you with speed, efficiency, and long-term value. By investing in components aligned with your workflow, you eliminate bottlenecks, increase productivity, and create a machine that can evolve with your projects.

Whether you’re a solo architect, part of a design team, or running a creative studio, the right hardware can turn technical tools into creative powerhouses.
